1 - Introduction

Sidero (“Iron” in Greek) is a project created by the Sidero Labs team. Sidero Metal provides lightweight, composable tools that can be used to create bare-metal Talos Linux + Kubernetes clusters. These tools are built around the Cluster API project.

Because of the design of Cluster API, there is inherently a “chicken and egg” problem: you need an existing Kubernetes cluster in order to provision the management plane, that can then provision more clusters. The initial management plane cluster that runs the Sidero Metal provider does not need to be based on Talos Linux - although it is recommended for security and stability reasons. The Getting Started guide will walk you through installing Sidero Metal either on an existing cluster, or by quickly creating a docker based cluster used to bootstrap the process.

Overview

Sidero Metal is currently made up of two components:

  • Metal Controller Manager: Provides custom resources and controllers for managing the lifecycle of metal machines, iPXE server, metadata service, and gRPC API service
  • Cluster API Provider Sidero (CAPS): A Cluster API infrastructure provider that makes use of the pieces above to spin up Kubernetes clusters

Sidero Metal also needs these co-requisites in order to be useful:

All components mentioned above can be installed using Cluster API’s clusterctl tool. See the Getting Started for more details.

2 - Installation

As of Cluster API version 0.3.9, Sidero is included as a default infrastructure provider in clusterctl.

To install Sidero and the other Talos providers, simply issue:

clusterctl init -b talos -c talos -i sidero

Sidero supports several variables to configure the installation, these variables can be set either as environment variables or as variables in the clusterctl configuration:

  • SIDERO_CONTROLLER_MANAGER_HOST_NETWORK (false): run sidero-controller-manager on host network
  • SIDERO_CONTROLLER_MANAGER_API_ENDPOINT (empty): specifies the IP address controller manager can be reached on, defaults to the node IP
  • SIDERO_CONTROLLER_MANAGER_API_PORT (8081): specifies the port controller manager can be reached on
  • SIDERO_CONTROLLER_MANAGER_CONTAINER_API_PORT (8081): specifies the controller manager internal container port
  • SIDERO_CONTROLLER_MANAGER_EXTRA_AGENT_KERNEL_ARGS (empty): specifies additional Linux kernel arguments for the Sidero agent (for example, different console settings)
  • SIDERO_CONTROLLER_MANAGER_AUTO_ACCEPT_SERVERS (false): automatically accept discovered servers, by default .spec.accepted should be changed to true to accept the server
  • SIDERO_CONTROLLER_MANAGER_AUTO_BMC_SETUP (true): automatically attempt to configure the BMC with a sidero user that will be used for all IPMI tasks.
  • SIDERO_CONTROLLER_MANAGER_INSECURE_WIPE (true): wipe only the first megabyte of each disk on the server, otherwise wipe the full disk
  • SIDERO_CONTROLLER_MANAGER_SERVER_REBOOT_TIMEOUT (20m): timeout for the server reboot (how long it might take for the server to be rebooted before Sidero retries an IPMI reboot operation)
  • SIDERO_CONTROLLER_MANAGER_IPMI_PXE_METHOD (uefi): IPMI boot from PXE method: uefi for UEFI boot or bios for BIOS boot
  • SIDERO_CONTROLLER_MANAGER_BOOT_FROM_DISK_METHOD (ipxe-exit): configures the way Sidero forces server to boot from disk when server hits iPXE server after initial install: ipxe-exit returns iPXE script with exit command, http-404 returns HTTP 404 Not Found error, ipxe-sanboot uses iPXE sanboot command to boot from the first hard disk

Sidero provides two endpoints which should be made available to the infrastructure:

  • TCP port 8081 which provides combined iPXE, metadata and gRPC service (external endpoint should be passed to Sidero as SIDERO_CONTROLLER_MANAGER_API_ENDPOINT and SIDERO_CONTROLLER_MANAGER_API_PORT)
  • UDP port 69 for the TFTP service (DHCP server should point the nodes to PXE boot from that IP)

These endpoints could be exposed to the infrastructure using different strategies:

  • running sidero-controller-manager on the host network.
  • using Kubernetes load balancers (e.g. MetalLB), ingress controllers, etc.

Note: If you want to run sidero-controller-manager on the host network using port different from 8081 you should set both SIDERO_CONTROLLER_MANAGER_API_PORT and SIDERO_CONTROLLER_MANAGER_CONTAINER_API_PORT to the same value.

3 - Architecture

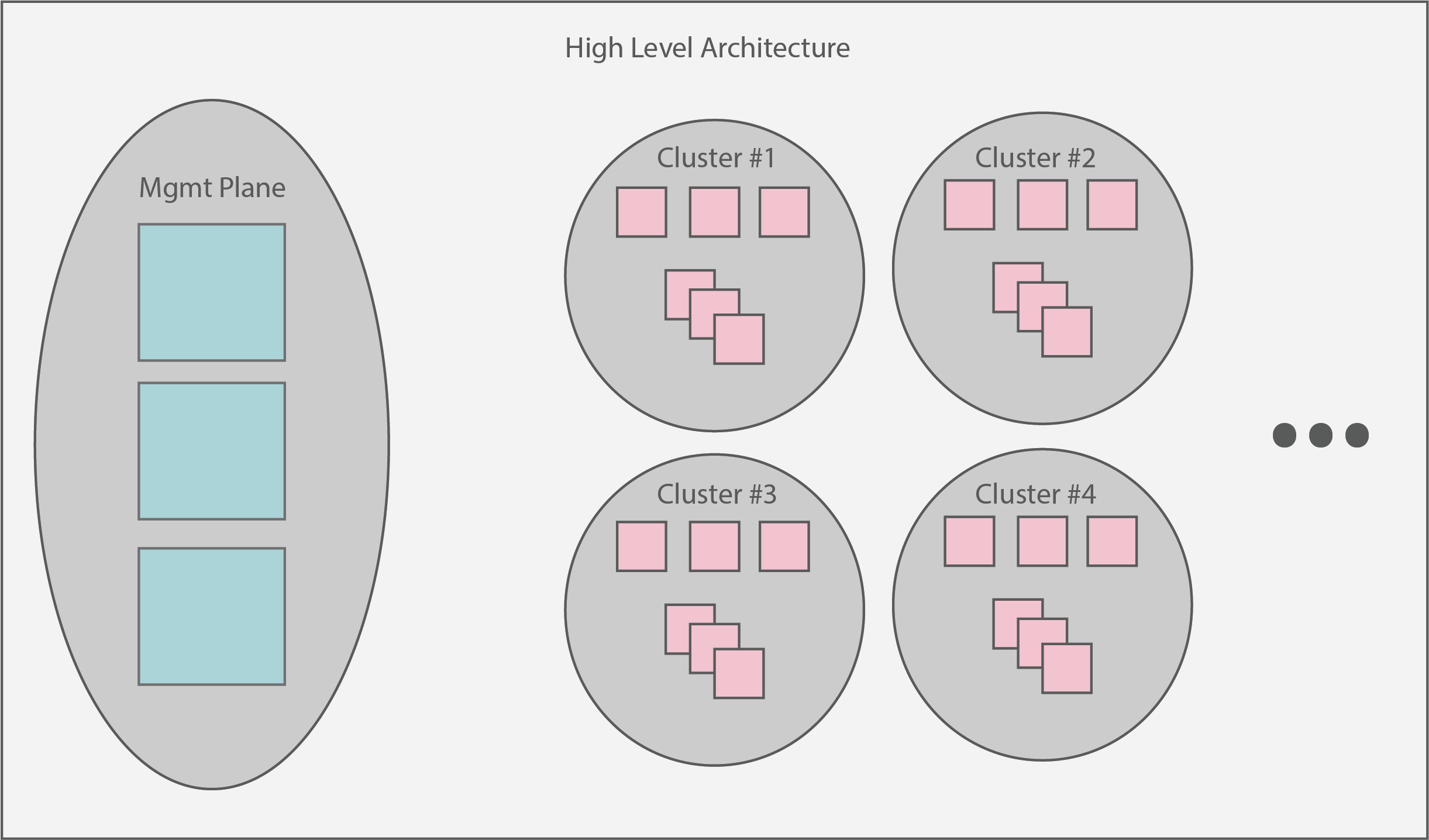

The overarching architecture of Sidero centers around a “management plane”. This plane is expected to serve as a single interface upon which administrators can create, scale, upgrade, and delete Kubernetes clusters. At a high level view, the management plane + created clusters should look something like:

Alternative text

4 - Resources

Sidero, the Talos bootstrap/controlplane providers, and Cluster API each provide several custom resources (CRDs) to Kubernetes. These CRDs are crucial to understanding the connections between each provider and in troubleshooting problems. It may also help to look at the cluster template to get an idea of the relationships between these.


Cluster API (CAPI)

It’s worth defining the most basic resources that CAPI provides first, as they are related to several subsequent resources below.

Cluster

Cluster is the highest level CAPI resource. It allows users to specify things like network layout of the cluster, as well as contains references to the infrastructure and control plane resources that will be used to create the cluster.

Machines

Machine represents an infrastructure component hosting a Kubernetes node. Allows for specification of things like Kubernetes version, as well as contains reference to the infrastructure resource that relates to this machine.

MachineDeployments

MachineDeployments are similar to a Deployment and their relationship to Pods in Kubernetes primitives. A MachineDeployment allows for specification of a number of Machine replicas with a given specification.


Cluster API Bootstrap Provider Talos (CABPT)

TalosConfigs

The TalosConfig resource allows a user to specify the type (init, controlplane, join) for a given machine. The bootstrap provider will then generate a Talos machine configuration for that machine. This resource also provides the ability to pass a full, pre-generated machine configuration. Finally, users have the ability to pass configPatches, which are applied to edit a generate machine configuration with user-defined settings. The TalosConfig corresponds to the bootstrap sections of Machines, MachineDeployments, and the controlPlaneConfig section of TalosControlPlanes.

TalosConfigTemplates

TalosConfigTemplates are similar to the TalosConfig above, but used when specifying a bootstrap reference in a MachineDeployment.


Cluster API Control Plane Provider Talos (CACPPT)

TalosControlPlanes

The control plane provider presents a single CRD, the TalosControlPlane. This resource is similar to MachineDeployments, but is targeted exclusively for the Kubernetes control plane nodes. The TalosControlPlane allows for specification of the number of replicas, version of Kubernetes for the control plane nodes, references to the infrastructure resource to use (infrastructureTemplate section), as well as the configuration of the bootstrap data via the controlPlaneConfig section. This resource is referred to by the CAPI Cluster resource via the controlPlaneRef section.


Sidero

Cluster API Provider Sidero (CAPS)

MetalClusters

A MetalCluster is Sidero’s view of the cluster resource. This resource allows users to define the control plane endpoint that corresponds to the Kubernetes API server. This resource corresponds to the infrastructureRef section of Cluster API’s Cluster resource.

MetalMachines

A MetalMachine is Sidero’s view of a machine. Allows for reference of a single server or a server class from which a physical server will be picked to bootstrap.

MetalMachineTemplates

A MetalMachineTemplate is similar to a MetalMachine above, but serves as a template that is reused for resources like MachineDeployments or TalosControlPlanes that allocate multiple Machines at once.

ServerBindings

ServerBindings represent a one-to-one mapping between a Server resource and a MetalMachine resource. A ServerBinding is used internally to keep track of servers that are allocated to a Kubernetes cluster and used to make decisions on cleaning and returning servers to a ServerClass upon deallocation.

Metal Controller Manager

Environments

These define a desired deployment environment for Talos, including things like which kernel to use, kernel args to pass, and the initrd to use. Sidero allows you to define a default environment, as well as other environments that may be specific to a subset of nodes. Users can override the environment at the ServerClass or Server level, if you have requirements for different kernels or kernel parameters.

See the Environments section of our Configuration docs for examples and more detail.

Servers

These represent physical machines as resources in the management plane. These Servers are created when the physical machine PXE boots and completes a “discovery” process in which it registers with the management plane and provides SMBIOS information such as the CPU manufacturer and version, and memory information.

See the Servers section of our Configuration docs for examples and more detail.

ServerClasses

ServerClasses are a grouping of the Servers mentioned above, grouped to create classes of servers based on Memory, CPU or other attributes. These can be used to compose a bank of Servers that are eligible for provisioning.

See the ServerClasses section of our Configuration docs for examples and more detail.

Sidero Controller Manager

While the controller does not present unique CRDs within Kubernetes, it’s important to understand the metadata resources that are returned to physical servers during the boot process.

Metadata

The Sidero controller manager server may be familiar to you if you have used cloud environments previously. Using Talos machine configurations created by the Talos Cluster API bootstrap provider, along with patches specified by editing Server/ServerClass resources or TalosConfig/TalosControlPlane resources, metadata is returned to servers who query the controller manager at boot time.

See the Metadata section of our Configuration docs for examples and more detail.

5 - System Requirements

System Requirements

Most of the time, Sidero does very little, so it needs very few resources. However, since it is in charge of any number of workload clusters, it should be built with redundancy. It is also common, if the cluster is single-purpose, to combine the controlplane and worker node roles. Virtual machines are also perfectly well-suited for this role.

Minimum suggested dimensions:

  • Node count: 3
  • Node RAM: 4GB
  • Node CPU: ARM64 or x86-64 class
  • Node storage: 32GB storage on system disk
